Description:

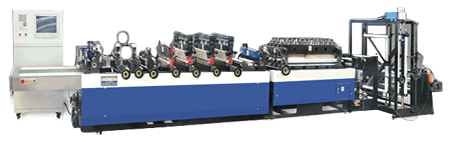

The machine is my company to absorb the advantages of domestic and foreign equipment and their years of experience, according to market demand, the development of light, electricity, gas and high-tech products. For the production of a variety of composite film substrate, high standards of triangular envelope.
Electrical control system uses a computer centralized control, man-machine interface dialogue by the display, depending on the demand for the product is set to display the operating parameters. Tension out of control, loss of color, speed and automatically shut down the host. Hot pressure using a large pressure structure, the use of plug-in and delivery times pulling type two kinds of ways to go to change the traditional way of film direction, using the opposite direction, the film sticks with mirror rods, films no scratches, keeping the film surface clear and beautiful. Is ideal for vacuum packaging equipment, cooking and packaging.


1 for a variety of composite films.
2 All parameters in real time by the CRT display, preset speed bag, bag length, temperature, counting, punching, times delivery, product delivery amount.
3 AC double servo system control bag length, high quality, and efficient.
4 unwinding, central tension out of control, loss of color, temperature gauge, such as automatic alarm.
5 new features to enhance sent six times.
6 Unwinding automatic tension control, optical correction.
7 can be increased as needed to stand bag, zipper bag features; custom two-piece wide body models.
The main technical parameters

Project TCJ-FBD400C
TCJ-FBD600C

The maximum diameter of unwinding
φ400mm
φ600mm

The maximum width of unwinding
800mm
1200mm

Speed bag
≤150pcs / min

Bag Variety
Trilateral closure

Bag length
Maximum 300mm, long way to send adopt times

Making Accuracy
≤ ± 0.5mm

Bag width
80-400mm
80-600mm

Total power
14KW
30KW

Gas source
0.6mpa

Cooling water
15L / min

Weight
About 3300kg
About 5000kg

Dimensions
8200 × 1400 × 1750mm
8500 × 1700 × 1850mm
